Energy efficient Hot Air Furnace for Chemical industry Indirect type

Hot Air Furnace Operation principle:

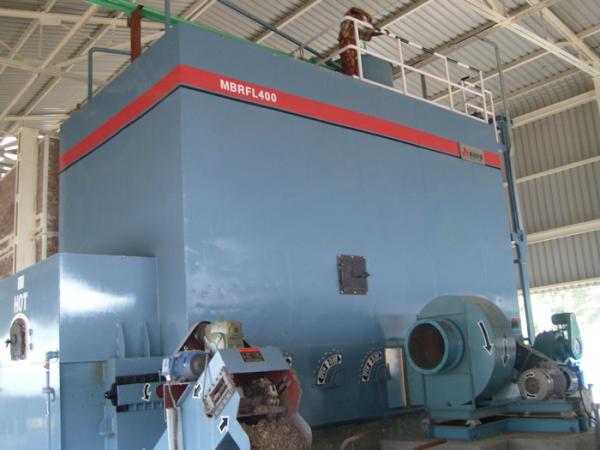

hot air furnace is specially designed for burning biomass fuels which are usually featured by low heat value, high moisture content and quite different fuel size. It is mainly consisted by reciprocating grate, mechanical drive system, combustion chamber, feeding hopper, ash remover, blower and exhaust fan.

The air-cooled reciprocating grate is inclined stair-like grate of which each stair is removable. When biomass fuel is fed onto the top stair via the feeding hopper, it pushes the fuel down the length of the grate through distict drying,gasification, combustion and burn-out zones. The combustion air is blown into the combustion chamber from the grate bottom through the holes in each grate bar. The ash is automatically discharged off at the end of grate into an ash conveying system. After heated, the hot air (800-1000 ℃) will be discharged by the exhaust fan for drying or heating process. Tubular type heat exchanger can be installed after the furnace to get clean hot air.

Hot Air Furnace attributes

About US

Zhejiang MeiBao Industrial Technology Co.,Ltd. (Original Hangzhou MeiBao Furnace Engineering Co., Ltd.) is a scientific and technological professional company integrating R & D, design, manufacture, installation, debugging and service of the complete set of production lines and energy equipments. The company has about 120 professionals in R & D, design, manufacturing, installation and project management. It has two manufacturing plants, covering an area of 80,000 square meters. The company is a "National High-tech Enterprise". It is a member of China washing Association technical equipment Specialized Committee and has the autonomy of import and export business. The company has a complete product research and development system,quality management system and professional engineering construction team. The company has passed ISO9001 international quality management system certification. Many of the company's technologies and equipment have applied for national invention and utility model patents.

The company can provide 5000~250000 tons / year detergent powder production and liquid detergent production 5000~250000 tons / year complete production line planning and design. The process configuration is from simple manual operation to centralized automatic control of central computer. The company undertakes technical consultation and old line reconstruction engineering technical services. The company has successfully designed a complete set of production lines for detergent powder, liquid detergent, wet baking soda, solid sodium silicate and so on for many companies all over the world.

Zhejiang Meibao Industrial Technology Co.,Ltd. (Original Hangzhou Meibao Furnace Engineering Co., Ltd.) is a scientific and technological professional company integrating R & D, design, manufacture, installation, debugging and service of the complete set of production lines and energy equipments. The company has about 150 professionals in R & D, design, manufacturing, installation and project management. It has two manufacturing plants, covering an area of 80,000 square meters. Our company is a "National High-tech Enterprise". It is a member of CCIA and has the autonomy of import and export business. Our company has a complete product research and development system,quality management system and professional engineering construction team. We have passed ISO9001 international quality management system certification. Many of the company's technologies and equipment have applied for national invention and utility model patents.

We can provide complete set of 5000~250000 tons / year detergent powder production line and liquid detergent production line. The process configuration is from simple manual operation to centralized automatic control of central computer. We undertakes technical consultation and old line reconstruction engineering technical services. Our company has successfully designed a complete set of production lines for detergent powder, liquid detergent, liquid sodium silicate, solid sodium silicate and so on for many companies all over the world.

The following is the delivery video of spray tower detergent powder production line with annual output of 200,000 tons.

The company's energy equipment and hot air furnace has been successfully applied to dry chemical, fertilizer, feed, building materials, medicine, food, metallurgy and other products. In Unilever (China, India, Pakistan), Indonesia P.T.Wings Surya Company, Indonesia PT. Pacinesia Chemical Industry Company, Pakistan Ittehad Chemicals Ltd , Singapore International Glue Company, American Procter & Gamble Company, German Henkel Company, Nice Group, Guangzhou Liby Group, Qinghai Salt Lake Yuantong Potash Corp, Zhong'a Chemical Fertilizer Co., Ltd., etc.

Our company's products are exported to Vietnam, India, Laos, Burma, Indonesia, Pakistan, Thailand, Tanzania, Garner, Jamaica and other countries.

We adhere to the management concept of "people-oriented, scientific and technological innovation, respect for nature, reasonable utilization, sustainable development and benefit society". We will always provide advanced technology, first-class products and high quality service to our customers. We insist that while bringing more benefits and guarantees to our customers, we also contribute to the sustainable development of China's resources and the improvement of human life.
